What is GRP Pipe?

What is GRP Pipes?

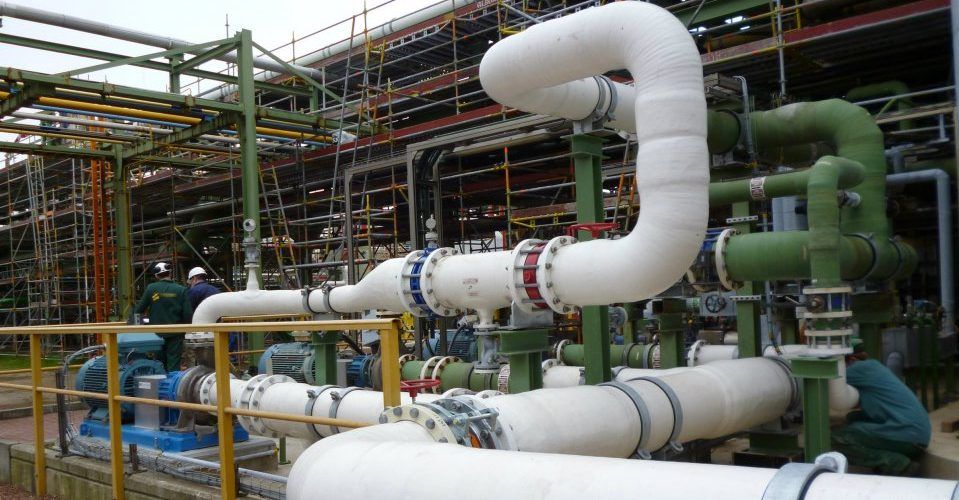

GRP (Glass Reinforced Plastic) Pipe is made from high-strength glass fiber reinforced plastic. This makes it highly durable and corrosion-resistant, making it suitable for many industries. GRP pipes are often used in transportation projects, water supply networks and many other applications due to their superior physical properties.

What is GRP Pipe?

GRP Pipes, also known as Glass Reinforced Plastics Pipes, are composite material pipes made of a polymer matrix reinforced with glass fibres. They have extremely high corrosion resistance and are thus widely used in low-temperature corrosion-resistant applications. GRP pipes have gradually replaced steel pipes in various fire and water services in recent years. GRE or GRP pipes can withstand high pressures at the same time. In many places, the terms FRP and GRP are used interchangeably. This article will provide an overview of GRP Pipes.

Visit jyotimetal for more information.

The GRP Family

  • GRP stands for glass-fibre reinforced plastic.
  • GRE stands for glass-fibre-reinforced epoxy.
  • GRV stands for glass-fibre vinyl ester.
  • GRUP: Glass fibre-reinforced unsaturated polyester.

The various types of pipes are chosen based on the required properties, such as chemical resistance, temperature resistance, and mechanical properties.

GRP Pipe Characteristics

  • Corrosion resistance: Corrosion resistance to both inside and outside corrosion. As a result, additional linings and exterior coatings are not required. Fibreglass composites outperform CS and SS in terms of strength per unit weight.
  • Lightweight: Fiberglass piping weighs 10% less than comparable concrete products and 1/6 the weight of steel products.
  • Electrical properties: Fiberglass pipes are nonconductive by nature. Some manufacturers provide conductive fibreglass piping systems to transport fluids such as jet fuel.
  • Dimensional stability: Fiberglass meets the most stringent material stiffness, dimensional tolerance, weight, and cost requirements.
  • Low maintenance costs: Fiberglass piping is simple to maintain because it does not rust, is easily cleaned and requires little environmental protection.

Benefits of GRP Pipes

GRP Pipes have several advantages, which are listed below.

Long life; high durability.

  • Low operating costs.
  • Corrosion resistance is high.
  • The lifecycle cost is low.
  • There is no need for cathodic protection.
  • Transportation and handling costs are reduced.
  • Friendly to the environment.
  • A wide range of applications.
  • It is less expensive than DSS pipe (Duplex stainless steel).

GRP and GRE Pipe Applications

GRP Pipes are widely used in the following industries:

  • Chemical process.
  • Desalination.
  • Effluents from industry
  • Mining.
  • Fields of oil
  • Drinkable water.
  • Raw water and power plant cooling
  • Intake and discharge of seawater
  • Metal Manufacturing
  • Slurry transport.
  • Distribution of water

Material used

  • Polyester Resins

Polyester Resins were used as the primary materials (The temperature limit is 70 deg C.)

Isophthalic Polyester (Tg is 90 deg C)

It is rarely used in chemical services, but it can be.

GRP underground gasoline storage tanks

Bisphenol A Polyester (Tg = 120 deg C)- A high-temperature, chemically resistant resin widely used in the chemical industry.

Chlorinated polyester (Tg = 110 deg C)-similar properties to Bisphenol A polyester, but with inherent fire retardant properties. Adding antimony oxide particles to the resin mix can improve this property.
